Wanted Developer Guide

---

Acknowledgements

This project is a modification of AddressBook Level 3 (AB3). The code structure, models and documentation is reused and maintained in largely the same format as AB3.

---

Setting Up, Getting Started

Refer to the guide Setting up and getting started.

---

Design

Architecture

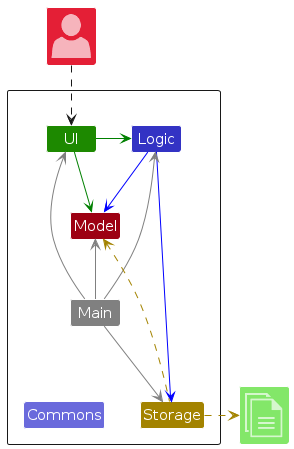

The Architecture Diagram given above explains the high-level design of the App.

Given below is a quick overview of main components and how they interact with each other.

Main components of the architecture

Main (consisting of classes Main and MainApp) is in charge of the app launch and shut down.

• At app launch, it initializes the other components in the correct sequence, and connects them up with each other.
• At shut down, it shuts down the other components and invokes cleanup methods where necessary.

The bulk of the app's work is done by the following four components:

• UI: The UI of the App.
• Logic: The command executor.
• Model: Holds the data of the App in memory.
• Storage: Reads data from, and writes data to, the hard disk.

Commons represents a collection of classes used by multiple other components.

How the architecture components interact with each other

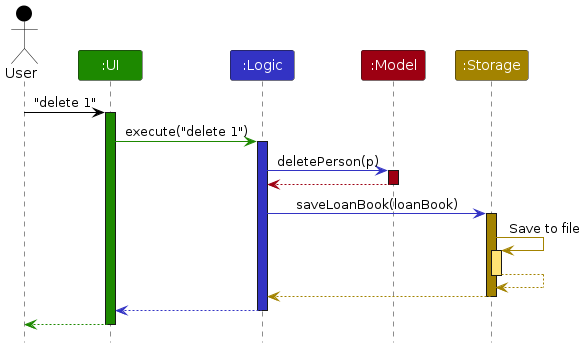

The Sequence Diagram below shows how the components interact with each other for the scenario where the user issues the command delete 1.

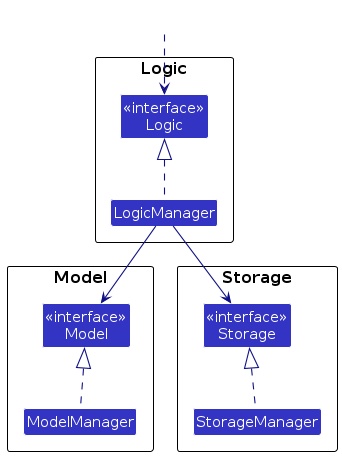

Each of the four main components (also shown in the diagram above),

• defines its API in an interface with the same name as the Component.
• implements its functionality using a concrete {Component Name}Manager class (which follows the corresponding API interface mentioned in the previous point.

For example, the Logic component defines its API in the Logic.java interface and implements its functionality using the LogicManager.java class which follows the Logic interface. Other components interact with a given component through its interface rather than the concrete class (reason: to prevent outside component's being coupled to the implementation of a component), as illustrated in the (partial) class diagram below.

The sections below give more details of each component.

UI component

The API of this component is specified in Ui.java

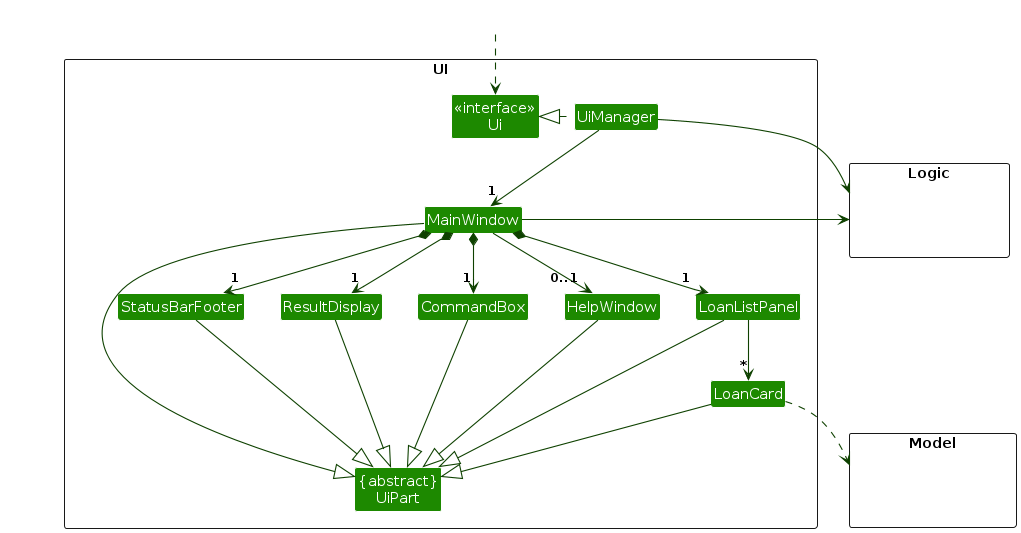

The UI consists of a MainWindow that is made up of parts e.g.CommandBox, ResultDisplay, LoanListPanel, StatusBarFooter etc. All these, including the MainWindow, inherit from the abstract UiPart class which captures the commonalities between classes that represent parts of the visible GUI.

The UI component uses the JavaFx UI framework. The layout of these UI parts are defined in matching .fxml files that are in the src/main/resources/view folder. For example, the layout of the MainWindow is specified in MainWindow.fxml

The UI component,

• executes user commands using the Logic component.
• listens for changes to Model data so that the UI can be updated with the modified data.
• keeps a reference to the Logic component, because the UI relies on the Logic to execute commands.
• depends on some classes in the Model component, as it displays Loan object residing in the Model.

Logic component

API : Logic.java

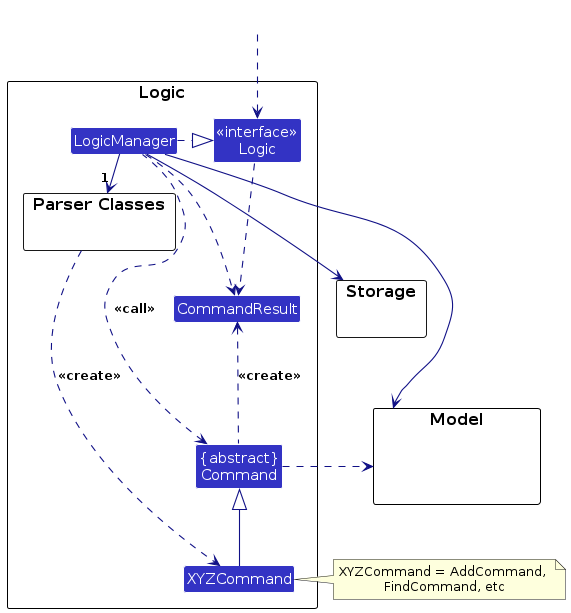

Here's a (partial) class diagram of the Logic component:

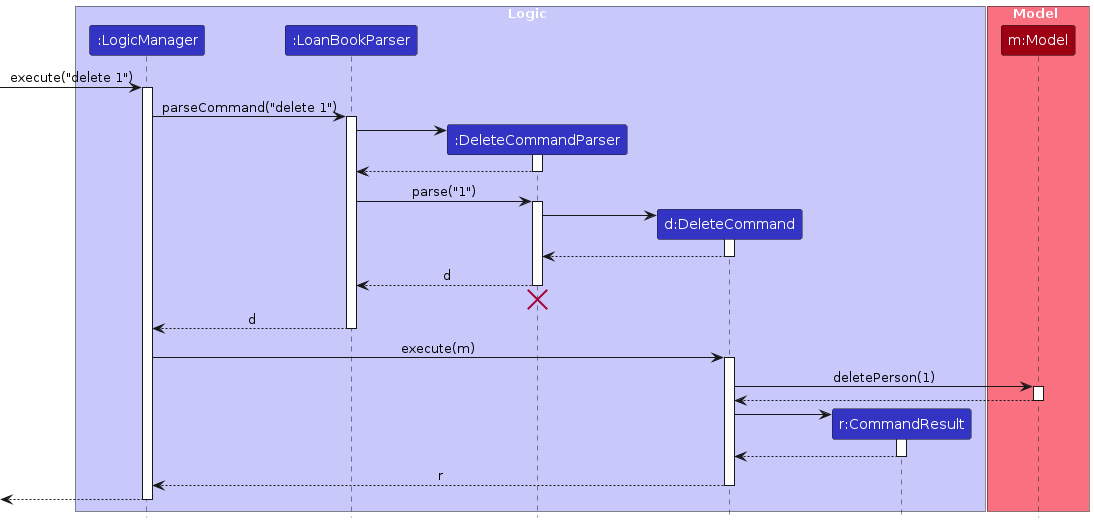

The sequence diagram below illustrates the interactions within the Logic component, taking execute("delete 1") API call as an example.

How the Logic component works:

1. When Logic is called upon to execute a command, it is passed to an LoanBookParser object which in turn creates a parser that matches the command (e.g., DeleteCommandParser) and uses it to parse the command.
2. This results in a Command object (more precisely, an object of one of its subclasses e.g., DeleteCommand) which is executed by the LogicManager.
3. The command can communicate with the Model when it is executed (e.g. to delete a loan).
   Note that although this is shown as a single step in the diagram above (for simplicity), in the code it can take several interactions (between the command object and the Model) to achieve.
4. The result of the command execution is encapsulated as a CommandResult object which is returned back from Logic.

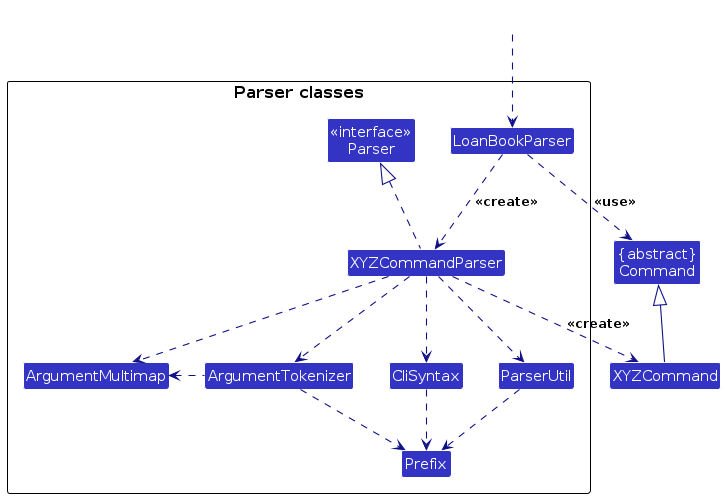

Here are the other classes in Logic (omitted from the class diagram above) that are used for parsing a user command:

How the parsing works:

• When called upon to parse a user command, the LoanBookParser class creates an XYZCommandParser (XYZ is a placeholder for the specific command name e.g., AddCommandParser) which uses the other classes shown above to parse the user command and create a XYZCommand object (e.g., AddCommand) which the LoanBookParser returns back as a Command object.
• All XYZCommandParser classes (e.g., AddCommandParser, DeleteCommandParser, ...) inherit from the Parser interface so that they can be treated similarly where possible e.g, during testing.

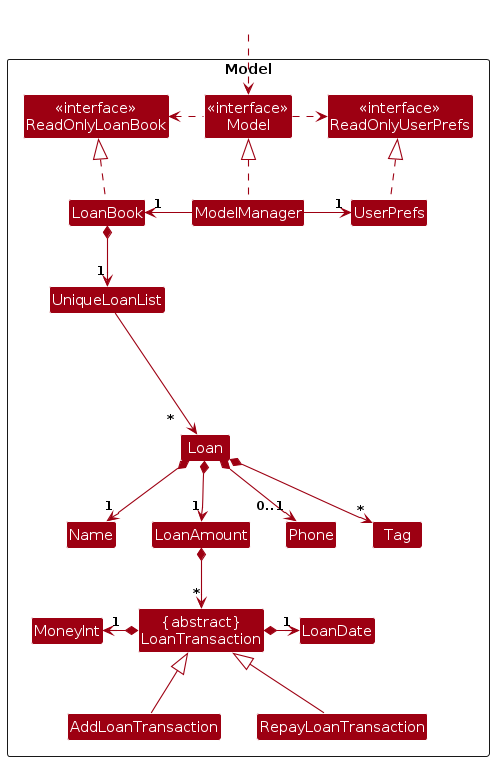

Model component

API : Model.java

The Model component,

• stores the loan book data i.e., all Loan objects (which are contained in a UniqueLoanList object).
• offers a list of all the stored Loan objects to outsiders as an unmodifiable ObservableList<Loan> that can be 'observed' e.g. the UI can be bound to this list so that the UI automatically updates when the data in the list change.
• stores a UserPref object that represents the user’s preferences. This is exposed to the outside as a ReadOnlyUserPref objects.
• does not depend on any of the other three components (as the Model represents data entities of the domain, they should make sense on their own without depending on other components)

Explanation of the LoanAmount class and its related components:

• LoanAmount is a class responsible for managing the loan amount of an entry. Each LoanAmount instance consists of a list of LoanTransaction objects.

• LoanTransaction is an abstract class representing a loan-related transaction. It is extended by two concrete subclasses: AddLoanTransaction and RepayLoanTransaction. Each subclass instance:

  • stores the transaction date using the LoanDate class, which encapsulates dates in a specific, consistent format.
  • stores the transaction amount using the MoneyInt class, which ensures exact representation of values with two decimal places (i.e. no precision loss).

• The constructor of LoanAmount takes an array of LoanTransaction objects and automatically computes the total loaned amount and the remaining loan amount of the entry. If the remaining loan amount becomes negative at any point during this calculation, the constructor throws an exception and the LoanAmount object is not created.

• The only way to create a LoanAmount object is through the constructor described above. This design ensures that even when users modify the transaction history via commands, no invalid transaction history can be formed.

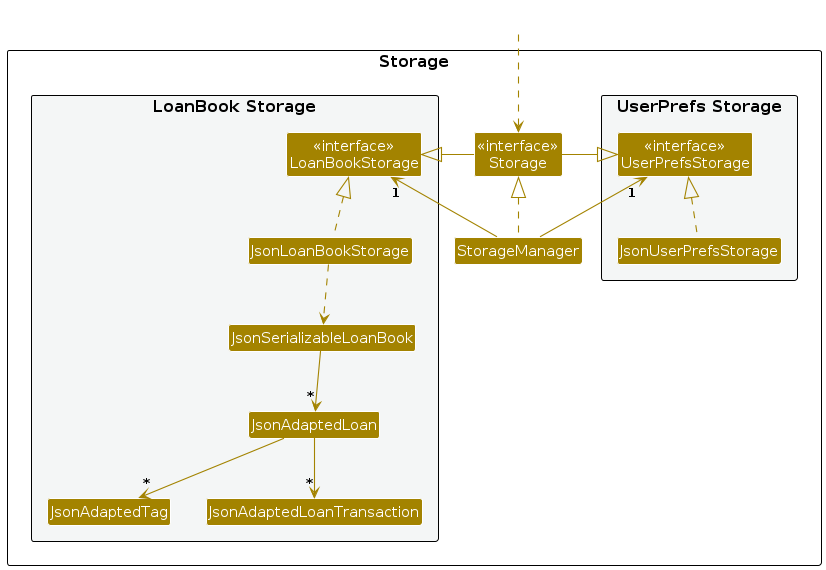

Storage component

API : Storage.java

The Storage component,

• can save both loan book data and user preference data in JSON format, and read them back into corresponding objects.
• inherits from both LoanBookStorage and UserPrefStorage, which means it can be treated as either one (if only the functionality of only one is needed).
• depends on some classes in the Model component (because the Storage component's job is to save/retrieve objects that belong to the Model)

Common classes

Classes used by multiple components are in the wanted.commons package.

---

Proposed feature

This section describes a proposed feature and how it can be implemented.

[Proposed] Undo/redo feature

Proposed Implementation

The proposed undo/redo mechanism is facilitated by VersionedLoanBook. It extends LoanBook with an undo/redo history, stored internally as an loanBookStateList and currentStatePointer. Additionally, it implements the following operations:

• VersionedLoanBook#commit()—Saves the current loan book state in its history.
• VersionedLoanBook#undo()—Restores the previous loan book state from its history.
• VersionedLoanBook#redo()—Restores a previously undone loan book state from its history.

These operations are exposed in the Model interface as Model#commitLoanBook(), Model#undoLoanBook() and Model#redoLoanBook() respectively.

Given below is an example usage scenario and how the undo/redo mechanism behaves at each step.

Step 1. The user launches the application for the first time. The VersionedLoanBook will be initialized with the initial loan book state, and the currentStatePointer pointing to that single loan book state.

Step 2. The user executes delete 5 command to delete the 5th entry in the loan book. The delete command calls Model#commitLoanBook(), causing the modified state of the loan book after the delete 5 command executes to be saved in the loanBookStateList, and the currentStatePointer is shifted to the newly inserted loan book state.

Step 3. The user executes add n/David to add a new entry. The add command also calls Model#commitLoanBook(), causing another modified loan book state to be saved into the loanBookStateList.

Step 4. The user now decides that adding the loan was a mistake, and decides to undo that action by executing the undo command. The undo command will call Model#undoLoanBook(), which will shift the currentStatePointer once to the left, pointing it to the previous loan book state, and restores the loan book to that state.

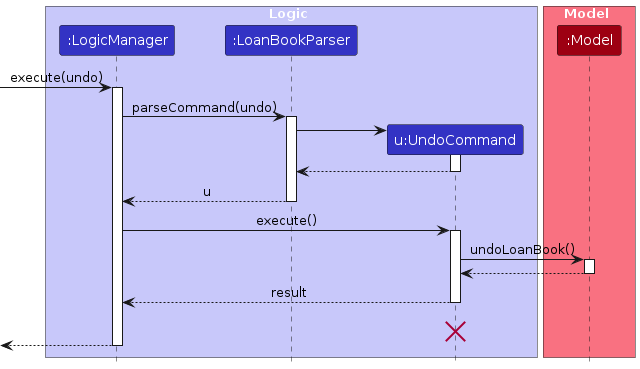

The following sequence diagram shows how an undo operation goes through the Logic component:

Similarly, how an undo operation goes through the Model component is shown below:

The redo command does the opposite—it calls Model#redoLoanBook(), which shifts the currentStatePointer once to the right, pointing to the previously undone state, and restores the loan book to that state.

Step 5. The user then decides to execute the command help. Commands that do not modify the loan book, such as help, will usually not call Model#commitLoanBook(), Model#undoLoanBook() or Model#redoLoanBook(). Thus, the loanBookStateList remains unchanged.

Step 6. The user executes clear, which calls Model#commitLoanBook(). Since the currentStatePointer is not pointing at the end of the loanBookStateList, all loan book states after the currentStatePointer will be purged. Reason: It no longer makes sense to redo the add n/David command. This is the behavior that most modern desktop applications follow.

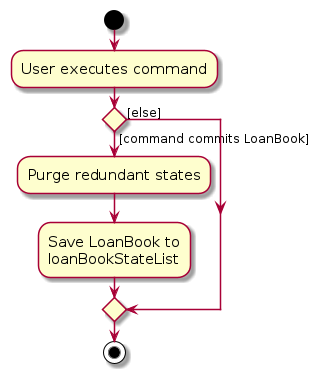

The following activity diagram summarizes what happens when a user executes a new command:

Design considerations:

Aspect: How undo & redo executes:

• Alternative 1 (current choice): Saves the entire loan book.

  • Pros: Easy to implement.
  • Cons: May have performance issues in terms of memory usage.

• Alternative 2: Individual command knows how to undo/redo by itself.

  • Pros: Will use less memory (e.g. for delete, just save the loan being deleted).
  • Cons: We must ensure that the implementation of each individual command are correct.

---

Documentation, logging, testing, configuration, dev-ops

• Documentation guide
• Testing guide
• Logging guide
• Configuration guide
• DevOps guide

---

Appendix: Requirements

Product scope

Target user profile:

• loans money to others
• prefers desktop apps over other types
• can type quickly
• prefers typing to mouse interactions
• is reasonably comfortable using CLI apps

Value proposition: manage loans much more easily than manual tracking with manual calculations, in a faster and more efficient manner than mouse-based apps

User stories

Priorities: High (must have) - * * *, Medium (nice to have) - * *, Low (unlikely to have) - *

Use cases

(For all use cases below, the System is the Wanted application and the Actor is the user, unless specified otherwise)

Use case: UC01 - Add a New Loan

MSS

1. User requests to add a new loan with borrower's name.

2. System records the new loan in the loan list.

3. System confirms that the loan has been successfully added.

   Use case ends.

Extensions

• 1a. System detects an error in the command entered.
  • 1a1. System displays an error message and tells the user the correct format to enter.
  • Use case resumes from step 1.

Use case: UC02 - Delete a Loan

MSS

1. User requests to delete a specific loan.

2. System removes the loan from the loan list.

3. System confirms that the loan has been successfully deleted.

   Use case ends.

Extensions

• 1a. The loan does not exist in the system.
  • 1a1. System displays a message indicating that the loan is not found.
  • Use case ends.

Use case: UC03 - List Current Loans

MSS

1. User requests to list all loans by name in alphabetical order.

2. System retrieves and displays the list of loans.

   Use case ends.

Use case: UC04 - Sort Current Loans

MSS

1. User requests to sort all loans by Remaining Loan Amount in decreasing order.

2. System retrieves and displays the list of loans.

   Use case ends.

Use Case: UC05 - Increase a Loan Amount

MSS

1. User requests to add an increase transaction of a specified amount and date to a loan.

2. System creates a new increase transaction.

3. System adds the transaction to the transaction history of the loan.

4. System updates and displays Total Loaned Amount and Remaining Loan Amount of the loan.

   Use case ends.

Extensions

• 1a. System detects an error in the command entered.
  • 1a1. System displays an error message and tells the user the correct format to enter.
  • Use case resumes from step 1.

Use Case: UC06 - Repay a Loan Amount in Full or Partially

MSS

1. User requests to add a repayment transaction of a specified amount and date to a loan.

2. System creates a new repayment transaction.

3. System adds the transaction to the Transaction History of the loan.

4. System updates and displays Total Loaned Amount and Remaining Loan Amount of the loan.

   Use case ends.

Extensions

• 1a. System detects an error in the command entered.
  • 1a1. System displays an error message and tells the user the correct format to enter.
  • Use case resumes from step 1.
• 1b. System detects the repayment amount is greater than the Remaining Loan Amount of the loan.
  • 1b1. System displays an error message informing the user to key in a valid repayment amount.
  • Use case resumes from step 1.

Use Case: UC07 - Editing a Loan Transaction

MSS

1. User requests to modify the amount and/or date of a transaction in a loan.

2. System updates the transaction.

3. System updates and displays the updated transaction history, Total Loaned Amount and Remaining Loan Amount of the loan.

   Use case ends.

Extensions

• 1a. System detects an error in the command entered.
  • 1a1. System displays an error message and tells the user the correct format to enter.
  • Use case resumes from step 1.
• 1b. System detects the modified amount will result in a negative Remaining Loan Amount.
  • 1b1. System displays an error message informing the user to key in a valid amount.
  • Use case resumes from step 1.

Use Case: UC08 - Deleting a Loan Transaction

MSS

1. User requests to delete a transaction in a loan.

2. System deletes the transaction.

3. System updates and displays the updated transaction history, Total Loaned Amount and Remaining Loan Amount of the loan.

   Use case ends.

Extensions

• 1a. System detects an error in the command entered.
  • 1a1. System displays an error message and tells the user the correct format to enter.
  • Use case resumes from step 1.
• 1b. System detects the deleted transaction will result in a negative Remaining Loan Amount.
  • 1b1. System displays an error message informing the user to key in a valid amount.
  • Use case resumes from step 1.

Use Case: UC09 - Tag a Loan

MSS

1. User requests to add tag(s) to a loan.

2. System adds the tag(s) to the loan.

3. System displays the updated loan.

   Use case ends.

Extensions

• 1a. System detects an error in the command entered.
  • 1a1. System displays an error message and tells the user the correct format to enter.
  • Use case resumes from step 1.
• 1b. User requests to delete all tags from a loan by entering an empty tag.
  • 1b1. System removes all tags from the loan.
  • Use case resumes from step 3.

Use Case: UC10 - Modifying the Phone of a Loan

MSS

1. User requests to modify the phone number of a loan.

2. System modifies the phone number of the loan.

3. System display the updated loan.

   Use case ends.

Extensions

• 1a. System detects an error in the command entered.
  • 1a1. System displays an error message and tells the user the correct format to enter.
  • Use case resumes from step 1.

Use Case: UC11 - Clearing all Loans

*MSS

1. User requests to clear all loans from the list.

2. System deletes all loans from the list.

   Use case ends.

Non-Functional Requirements

1. Should work on any mainstream OS as long as it has Java 17 or above installed.
2. Should be able to hold up to 1000 loans without a noticeable sluggishness in performance for typical usage.
3. A user with above average typing speed for regular English text (i.e. not code, not system admin commands) should be able to accomplish most of the tasks faster using commands than using the mouse.

Glossary

• Mainstream OS: Windows, Linux, Unix, MacOS
• Loan: A group of information associated with a person the user lends to.
• Loan Issuer: The loan who lends money or items to others and expects repayment or return.
• User: A general term for loan issuers managing their loans.
• Forgetful User: A user who needs additional reminders and tracking features to recall outstanding loans.
• Frequent Loaner: A user who frequently lends money or items and needs an organized record of past and present loans.
• Cash-Strapped User: A user who urgently needs to recover loaned money to maintain financial stability.
• New User: Someone who has just started using the system and may require guidance on how to navigate it.
• Amount: A sum of money.
• Total Loaned Amount: Total amount of money loaned to a person across all transactions associated with them.
• Remaining Loan Amount: Amount of money a person is yet to repay across all transactions associated with them.
• Transaction: An action to increase or repay the loan owed to the user.
• Tags: A method of categorizing individuals based on different attributes such as spending habits, friends, family etc.
• Leaderboard: A visual ranking system displaying individuals with the highest loans.
• Transaction History: A record of all transactions under a current loan, categorized by increase or repay transactions.
• Clear: The ability to delete all stored loan data, often used to clear test or example entries.
• Example Entries: Pre-filled sample data to help new users understand how the system works.
• Wanted/Not Wanted: UI element on each loan entry representing whether the loan is fully returned.

---

Appendix: Instructions for manual testing

Given below are instructions to test the app manually.

Launch and shutdown

1. Initial launch

   1. Download the latest jar file and copy into an empty folder.

   2. Run the jar file with Java 17 (best to be done through command line). The default window size may not be suitable.

2. Saving window preferences

   1. Resize the window to a desired size. Move the window to a different location. Close the window.

   2. Re-launch the app.
      Expected: The most recent window size and location is retained.

Adding a loan

1. Prerequisites: No entries are in the list, easiest done by clearing all entries from the list by running clear.

2. Creating a new entry

   1. Test case: add n/John
      Expected: A new entry with name John is created in position 1. It should also have the default parameters of $0.00 in loan amount, no tags and no phone number.

   2. Test case: add n/John
      Expected: No entry is created. Error details shown in status message. Command is not erased from input field.

   3. Test case: add n/john
      Expected: A new entry is name john is created with default parameters.

3. Adding a phone number to entries

   1. Test case: phone 1 p/98765432
      Expected: Adds the phone number 98765432 to the entry for John.

   2. Test case: phone 1 p/
      Expected: Deletes the phone number and removes it from the display for the entry for John.

   3. Test case: phone 2 p/abcdefgh
      Expected: No phone number is updated. Error details shown in status message. Command is not erased from input field.

4. Adding tags to entries

   1. Test case: tag 1 t/friend t/frequentloaner
      Expected: Adds the tags friend and frequentloaner to the entry for John.

   2. Test case: tag 1 t/
      Expected: Removes all tags from the entry for John.

5. Adding loans to entries

   1. Test case: increase 1 l/100.00 d/2025-01-01
      Expected: The entry for John at index 1 has a loan for $100.00 on 2025-01-01 recorded in its transaction history, and the remaining loan amount and the total loaned amount are increased by $100.00.
      The entry should now show "Wanted" instead of "Not Wanted".

   2. Test case: increase 1 l/-100.00 d/2025-02-02
      Expected: No transaction is created. Error details shown in the status message. Command is not erased from input field.

Repaying a loan

1. Prerequisites: The first entry on the currently displayed list has a remaining loan amount of $100.00.

2. Adding loan repayments to entries

   1. Test case: repay 1 l/60.00 d/2025-01-03
      Expected: The first entry on the list now has a remaining loan amount of $40.00. The repayment transaction details are added to the transaction history.

   2. Test case: repay 1 l/50.00 d/2025-01-04
      Expected: No transaction is created. Error details shown in the status message. Command is not erased from input field.

   3. Test case: repay 1 l/40.00 d/2025-01-04
      Expected: The first entry on the list now has a remaining loan amount of $0.00 and shows "Not Wanted". The repayment transaction details are added to the transaction history.

Editing loan transaction history

1. Prerequisites: The first entry on the currently displayed list has a transaction history of exactly a $100.00 loan in the first slot and a $50.00 repayment in the second slot.

2. Editing loan transaction history

   1. Test case: edithist 1 i/2 l/60.00 d/2025-01-10
      Expected: The repayment transaction is increased to $60.00 and the date is changed to 2025-01-10. The remaining loan amount of the entry should be updated to $40.00.

   2. Test case: edithist 1 i/1 l/40.00
      Expected: No change occurs. Error details shown in the status message. Command is not erased from input field.

   3. Test case: edithist 1 i/1 l/250.00
      Expected: The loan transaction is increased to $250.00. The date is unchanged. The remaining loan amount and the total loaned amount of the entry should be updated to $190.00 and $250.00, respectively.

   4. Test case: edithist 1 i/5 l/100.00
      Expected: No change occurs. Error details shown in the status message. Command is not erased from input field.

Deleting loan transaction history

1. Prerequisites: The first entry on the currently displayed list has a transaction history of exactly a $100.00 loan in the first slot and a $50.00 repayment in the second slot.

   1. Test case: delhist 1 i/1
      Expected: No change occurs. Error details shown in the status message. Command is not erased from input field.

   2. Test case: delhist 1 i/2
      Expected: The transaction for the repayment is deleted. The remaining loan amount is reverted to $100.00.

Finding specific entries

1. Prerequisites: There are multiple entries on the list with different names, with at least one entry containing John in the name and no entries containing Jim.

   1. Test case: find John
      Expected: Entries containing the name John (case-insensitive) are moved to the top of the list.

   2. Test case: find Jim
      Expected: No change occurs.

Displaying all entries by name in alphabetical order

1. Prerequisites: There are multiple entries on the list with different names

2. Test case: list
   Expected: All entries are sorted in alphabetical order of name.

Sorting the list

1. Prerequisites: There are multiple entries on the list with different Remaining Loan Amount.

2. Test case: sort
   Expected: All entries are sorted in decreasing order of Remaining Loan Amount.

Deleting a loan

1. Prerequisites: Multiple loans in the list.

   1. Test case: delete 1
      Expected: First entry is deleted from the list. Details of the deleted entry shown in the status message.

   2. Test case: delete 0
      Expected: No loan is deleted. Error details shown in the status message. Command is not erased from input field.

   3. Other incorrect delete commands to try: delete, delete x, ... (where x is larger than the list size)
      Expected: Similar to previous.

---

Appendix: Planned Enhancements

Team Size: 5 pax

1. Names that do not match exactly, case-sensitive, are currently considered different names and can be added. As this may often be a result of user error, we plan to add detection for case-insensitive matches and prevent them from being added or renamed. For instance, add n/john should fail if an entry for John already exists.
2. Names that contain special characters that are non-alphanumeric are currently not supported. As such names do exist, we plan to add support for common special characters in names, such as / and -.
3. There are currently no checks for dates in transaction history, allowing transactions to be edited to be out of order. We plan to add date checking to ensure transaction editing enforces a sensible timeline.
4. Likewise, as there are no checks for dates in transaction history, transactions may be recorded out of date order. We plan to make transactions displayed by date order in the transaction lists.
5. Phone numbers are currently required to be alphanumeric. We plan to add support for allowing international phone numbers with the + character for country code.

---

Appendix: Effort

This project involved restructuring the model of AB3 associating information with a Person to our model of associating information with a Loan.

As part of our objective was to automate the calculation of loan amounts for the user, we needed to implement ways to easily track and update information in the Loan. We created several new classes to encompass the new data types of money, dates, as well as the LoanAmount and LoanTransaction classes to hold information involving how the user interacts with their loanees.

During the MVP phase of our project, we had initially planned to simply track each loan transaction individually, with each loan transaction being its own Loan object, allowing our model structure and program to function similarly to AB3. However, we discovered that this would make it difficult to track loans associated with a single person to collate information such as Total Loaned Amount and Remaining Loan Amount, and this would not accurately simulate cases where a person borrows multiple times before repaying all at once, or partially repaying for multiple loans in amounts that did not match the borrowed amounts exactly.

As such, we embarked on significant code restructuring across v1.4 and v1.5 to get to our current model, allowing us to associate all transactions with a single person under a Loan, which also provided much easier ways to display that information in a grouped manner that made more realistic sense. This allowed us to then implement easier methods to track Total Loaned Amount and Remaining Loan Amount, allowing us to display that information at all times up front. This also required modification of the UI to accommodate the grouping of information.

In addition to the code restructuring, we introduced new features to edit and delete transaction history. Implementing these features required us to revisit the design of the Loan model and the command execution mechanism, ensuring that the model itself enforces the validity of the transaction history. This design choice eliminated the need for each individual command to perform its own validity checks when modifying loans.

Additionally, unlike AB3, where all information in an entry could be added or edited in a single command, we chose to have each piece of information split out into separate commands. This necessitated creating many additional Command and CommandParser classes, as well as many additional test cases. Doing so benefits the user as it splits up the entering or editing of information into individual pieces that they are able to perform step-by-step, while also clearly showing the user on the exact pieces of information they wished to input being in an invalid format.
